Specifications
| Supported CPU | Intel i3/i5/i7/Celeron/Pentium 6th & 7th generation series processor in LGA 1151 | |
| Chipset | Intel H110 | |
| Memory Supported | 2 DDR4 DIMM Memory Slots, Memory up to 32GB, Supports DDR4 2133/2400/2666 MHz memory | |
| BIOS | AMI BIOS | |

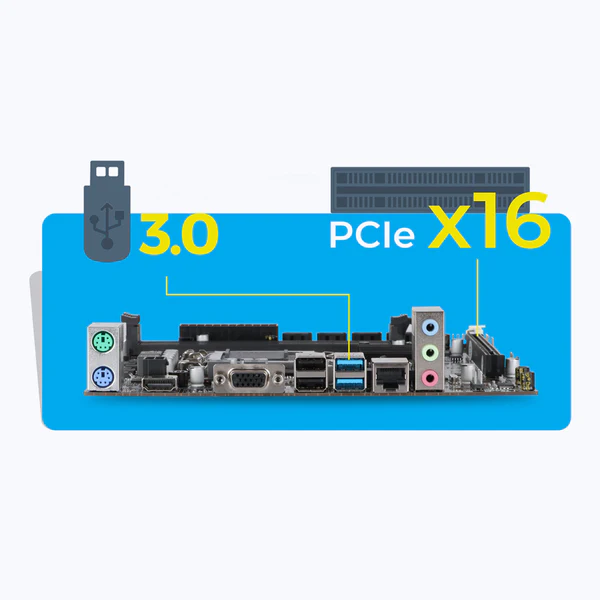

| I/O Interface | 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio,1 x PS/2 keyboard port, 1 x PS/2 mouse port | |
| Onboard Interface | 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector 1 x Front Panel connector, 1 x Front Audio Connector, 1 x Speaker Connector, 2 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x 4-pin CPU Fan Connector, 1 x SYS Fan Connector, 1 x clear CMOS Connector, 4 x SATA 3.0 | |
| Integrated LAN | Supports RTL8105E 10/100 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express x16 slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | China | |
Package Contents | ||
| ZEB-H110 Motherboard | 1 Unit | |

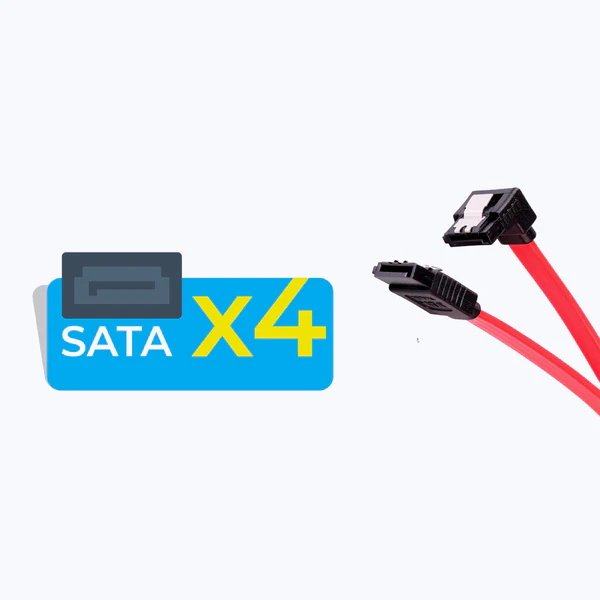

| SATA cable | 1 Unit | |
| I/O Backplate | 1 Unit | |
| Driver disc | 1 Unit | |
| User manual | 1 Unit |
