Specifications
| Supported CPU | Intel i3/i5/i7/Celeron/Pentium 6th,7th,8th & 9th generation series processor in LGA 1151 | |
| Chipset | Intel H310 | |
| Memory Supported | 2 DDR4 DIMM Memory Slots, Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory | |
| BIOS | AMI EFI BIOS | |

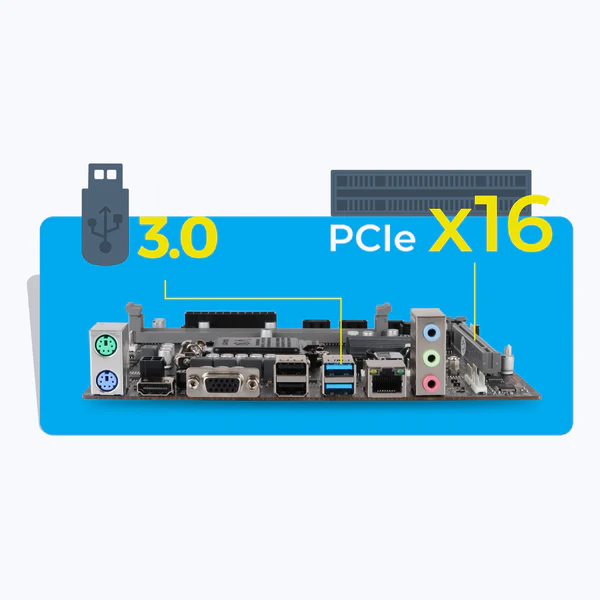

| I/O Interface | 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port,2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio ,1 x PS/2 keyboard port, 1 x PS/2 mouse port | |
| Onboard Interface< | 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector 1 x Front Panel, connector, 1x Front Audio Connector, 1 x Speaker Connector 2 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector 1x SYS Fan Connector, 1 x COM Connector,1 x clear CMOS Connector, 3 x SATA 3.0 | |
| Integrated LAN | Supports RTL8106E 10/100 Mbps | |
| Expansion Slot | 1 x PCI Express x16 slot, 1 x M.2 slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | China | |
Package Contents | ||
| ZEB-H310 Motherboard | ||

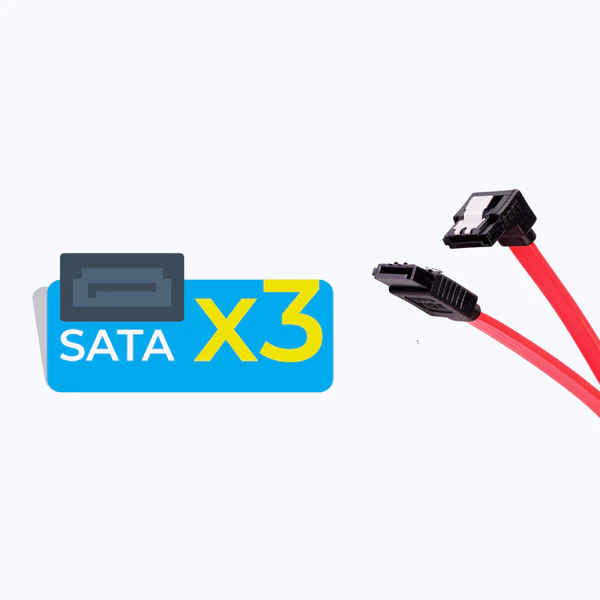

| SATA cable | 1 Unit | |
| I/O Backplate | 1 Unit | |
| Driver disc | 1 Unit | |
| User manual | 1 Unit |
