Specifications
| Supported CPU | Intel Celeron / Pentium / i3 / i5 / i7 / i9 12th & 13th generation series processor in LGA 1700 | |
| Chipset | Intel H610 Chipset | |
| Memory Supported | 2 no’s DDR4 Memory slots Memory up to 64GB Supports DDR4 2133/2666/3200 MHz memory | |
| BIOS | AMI BIOS | |

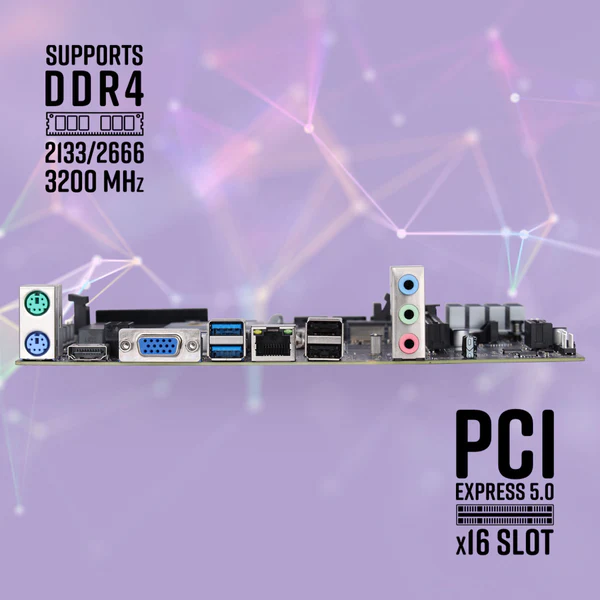

| I/O Interface | 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio – 5.1 audio, 1 x PS/2 keyboard port and 1 x PS/2 Mouse port | |
| Onboard Interface | 1x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector 1 x USB 3.0 header, 1 x USB 2.0 header,1 x Front Audio Connector 3 x SATA 3.0, 1 x COM pin, 1 x Front Panel connector 1 x 4 pins CPU FAN, 1 x 4 pins SYS FAN. | |
| ntegrated Sound | With 5.1-Channel Audio | |
| Integrated LAN | Supports RTL8111G 10/100/1000 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express 5.0 x16 Slot, 1 x PCI Express 3.0 x1 Slot, 1 x SATA M.2 Slot* | |
| Form Factor | Micro-ATX | |
| Country of Origin | People’s Republic of China | |
| ||
| ZEB-H610 Motherboard | 1 U | |
| SATA Cable | 1 U | |
| I/O Backplate | 1 U | |
| Driver Disc | 1 U | |
| User Manual | 1 U | |
| *not compatible with NVMe |
